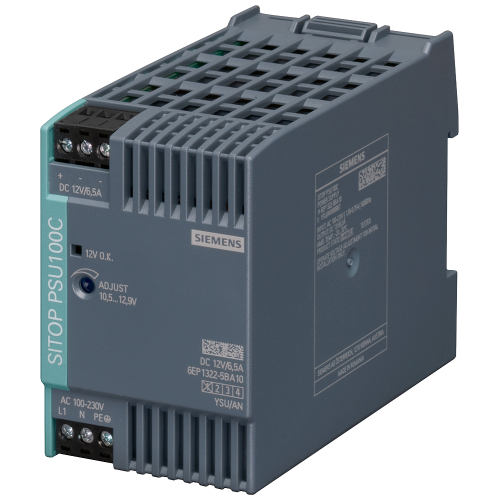

Sitop Compact, input 120-230V 1ph /110 - 300V DC- output 12V/6.5 amp DC

6EP13225BA10

Sitop Compact, input 120-230V 1ph /110 - 300V DC- output 12V/6.5 amp DC

Produced by Siemens

Availability Back Order

Price - £124.00
  • Stabilized power supply: SITOP PSU100C
  • Input voltage: 120-230 V AC or 110-300 V DC
  • Output voltage: 12 V DC
  • Output current: 6.5 A
Product
Manufacturer Material ID -
6EP1322-5BA10
Net Weight -
0.35kg
Additional Product Information
Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704
Technical Specification
Built-in height -
180 Millimetre
Built-in width -
52.5 Millimetre
ETIM_MATCH -
6EP13225BA10 Millimetre
1st secondary output voltage -
12 Volt
Depth -
100 Millimetre
Height -
80 Millimetre
Max. output current 1 -
6.5 Ampere
Nominal value output current 1 -
6.5 Ampere
Nominal value output voltage 1 -
12 Volt
Power output -
78 Watt
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Recess height -
180 Millimetre
Recess width -
52.5 Millimetre
Width -
52.5 Millimetre
